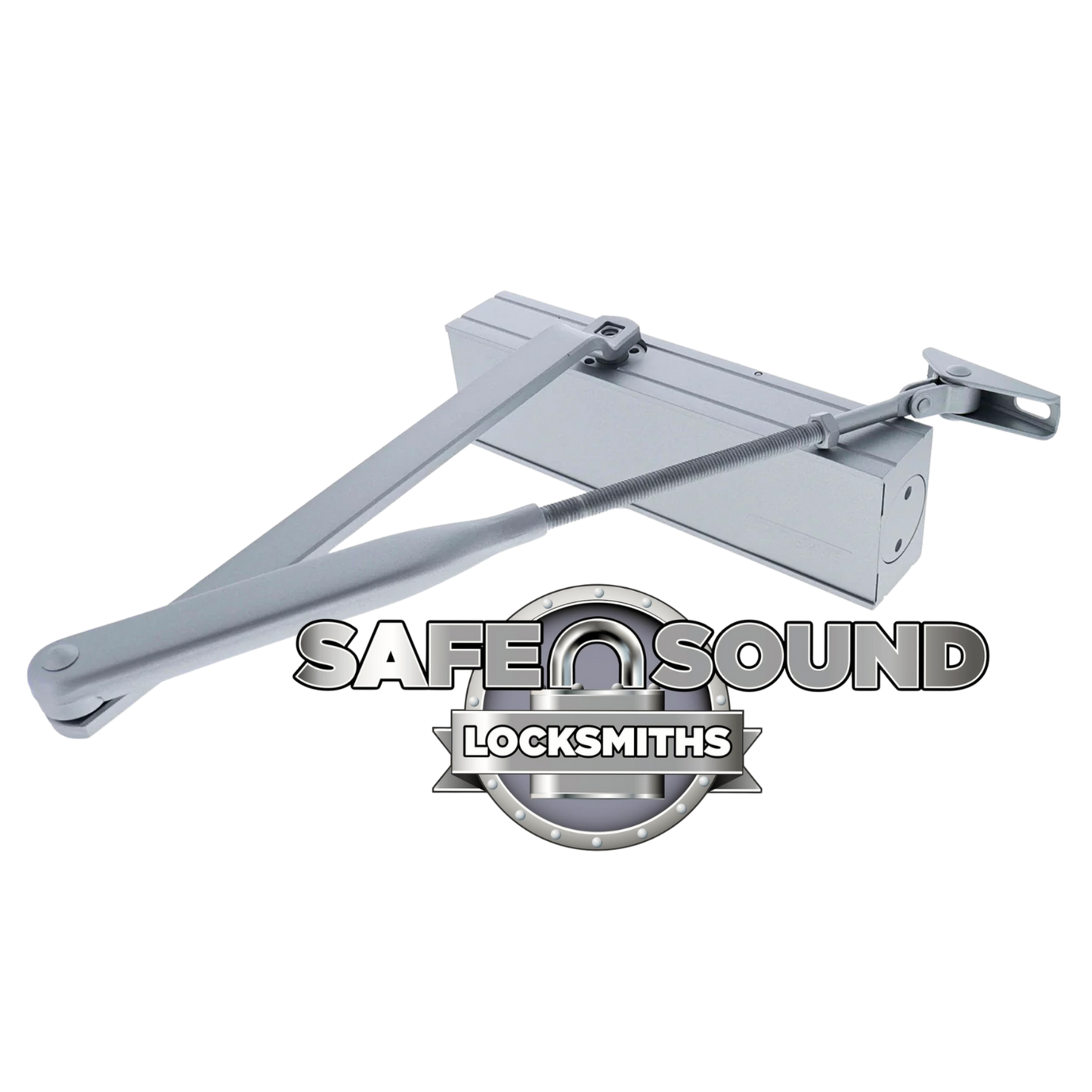

Carbine CDC-3 EN2-4 Standard Arm Door Closer- LAKCDC3S

Carbine LAKCDC3S CDC-3 EN2-4 Standard Arm Door Closer with Backcheck Silver CDC-3-S

Product Code: LAKCDC3S

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• Fire rated for 2 hours
• Constructed from 6061 grade aluminium
• Cycle tested to 500,000 cycles
• Adjustable closing & latching speed
• Thermo-constant valve
• Surface mount
• Transom mount on push side
• Rack and pinion
• Positional mounting for closer strength

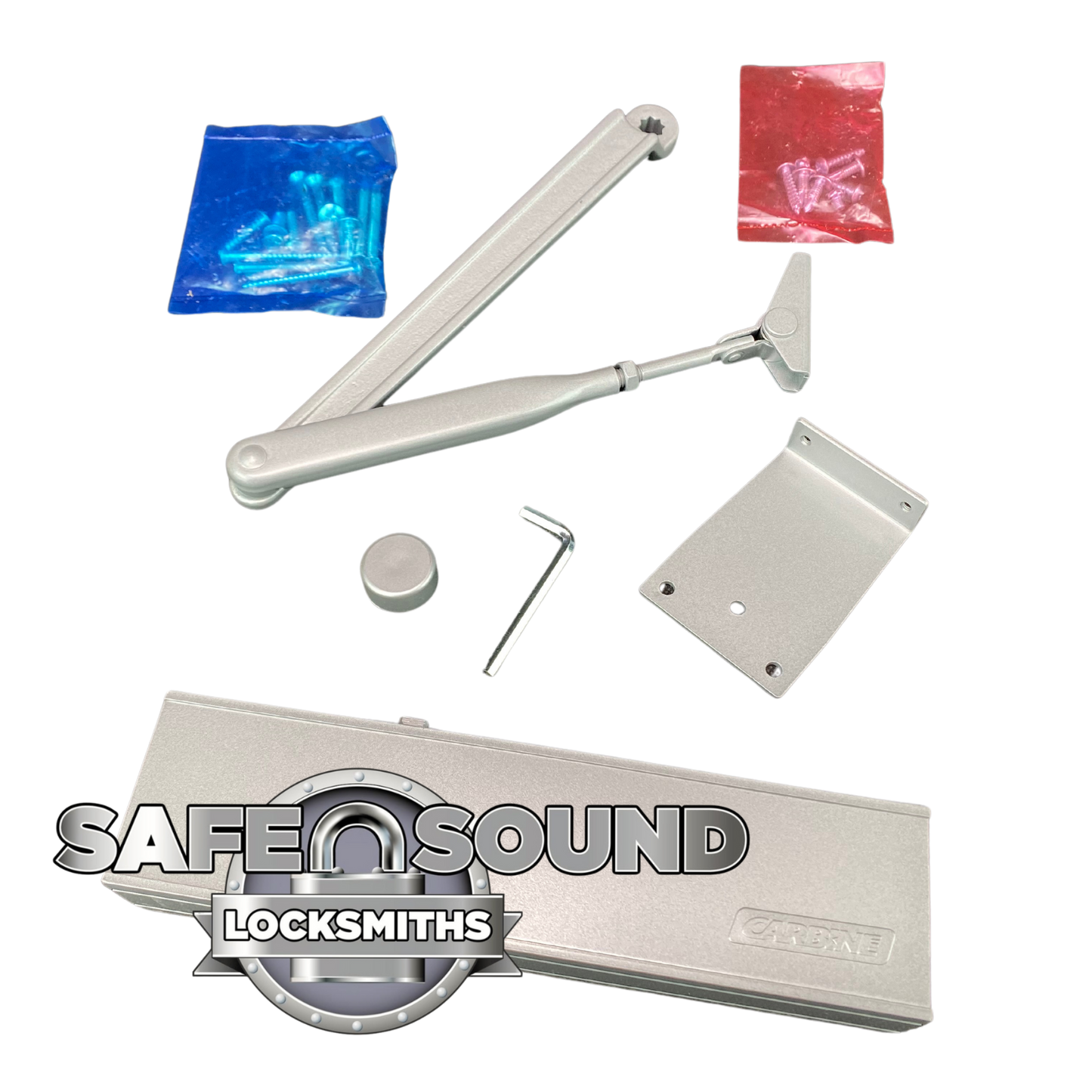

• Supplied with standard and parallel arm fittings
• Single-action door
• Non-handed installation
• Supplied with timber and self-drilling metal screws
• Constructed with extruded anodized aluminium body
• Slide rail arms for the CDC range include the hold open insert

Specifications:

• Standard  Arm: 180 Degree Opening
• Parallel Arm: 130 Degree Opening
• Sliding Arm Pull:  180 degree, push 110 degree opening
• Hold Open: 130 degree opening (180 degree, hold open angle 70 to 150)
• Adjustable Back Check: 70 to 90 degrees
• Power: EN 2 to 4
• Parallel Bracket Mount on Size: 3 to 4
• Max Door Width: 1100mm
• Weight Capacity: 40kg to 80kg
• Backcheck: Yes
• Length: 236mm
• Width: 60mm
• Height: 39mm
• Finish: Silver

Ratings:

• Tested to EN1154 standards
